Product code: 4751029890467

Order product

Delivery time approximately 2 weeks

Specifications:

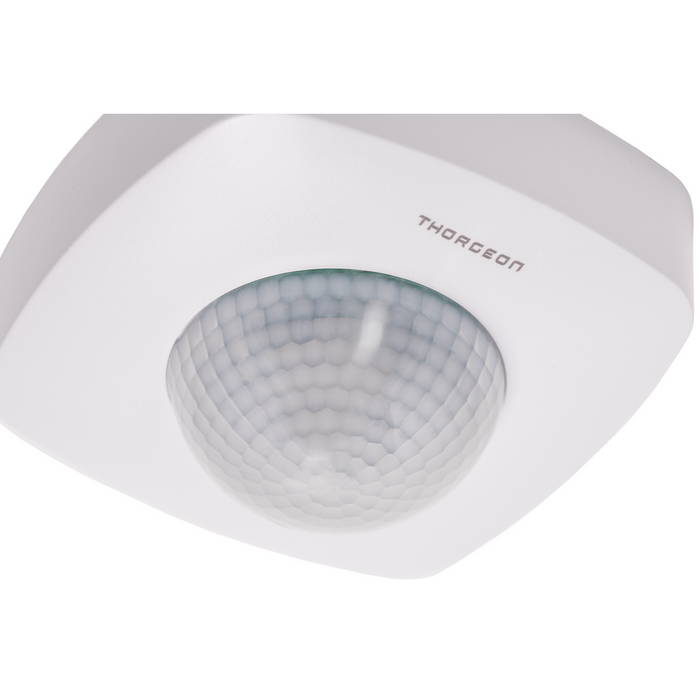

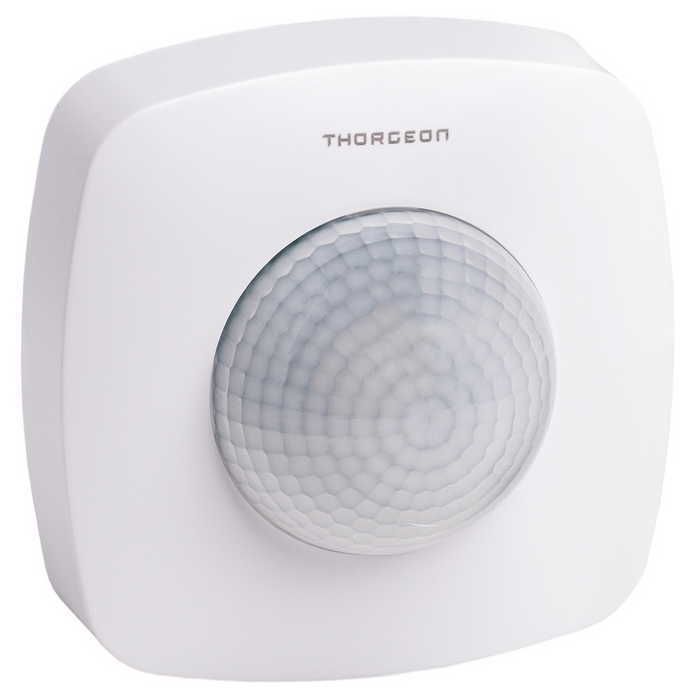

• Type: Presence detector
• Sensor: Passive infrared sensor
• Detection range: 360 degrees
• Maximum front reach: 20 meters
• Light intensity adjustment: Yes
• Installation method: Surface mounting (on a tile)
• Connection type: Screw terminals
• Color: White
• Protection class: IP20 (not protected against water)
• Frequency: 50 - 60 Hz
• Shortest startup time: 10 seconds
• Daily usage time: 30 minutes
• Maximum switching power: 1000 W
• Maximum switching power LED: 300 W
• Width: 102.5mm
• Height: 102.5mm
• Depth: 58.3mm
• Rated voltage: 220 - 240 V

• Standard lighting control: Yes
• Optimal installation height: 2.2 - 6 meters
• Maximum lateral reach: 20 meters
• Sensitivity adjustment: Yes
• Suitable for ceiling mounting: Yes
• Material: Plastic
• Material quality: Thermoplastic
• Halogen-free: Yes
• Surface treatment: Untreated
• Surface finish: Matte
• RAL number (similar): 9010
• Voltage type: AC
• Light intensity value: 3 - 2000 lux
• Temperature: -20 - +40°C

Brochure (in English)

Instructions for use (in English)
