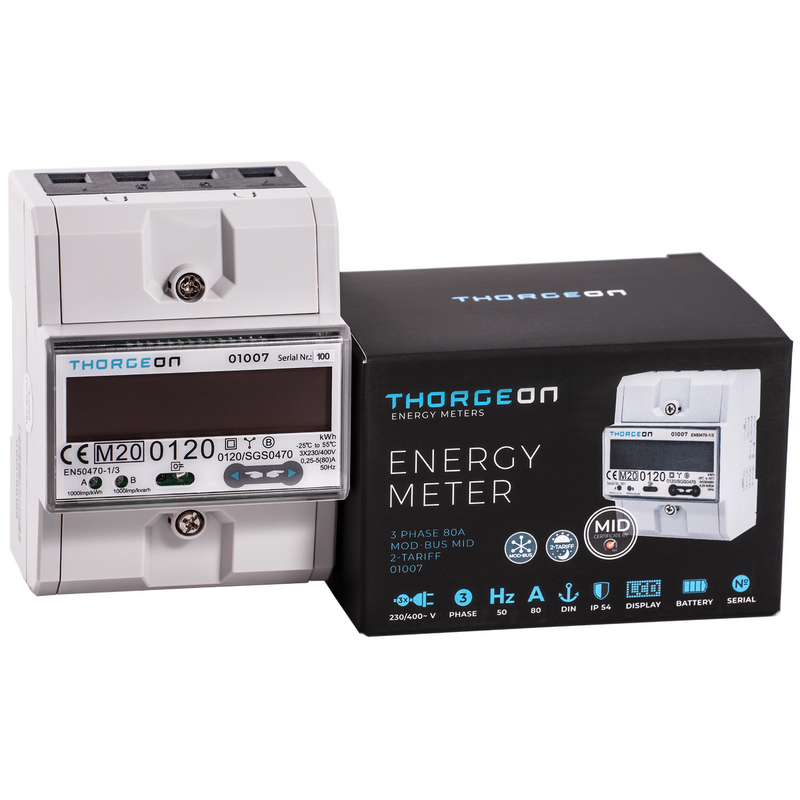

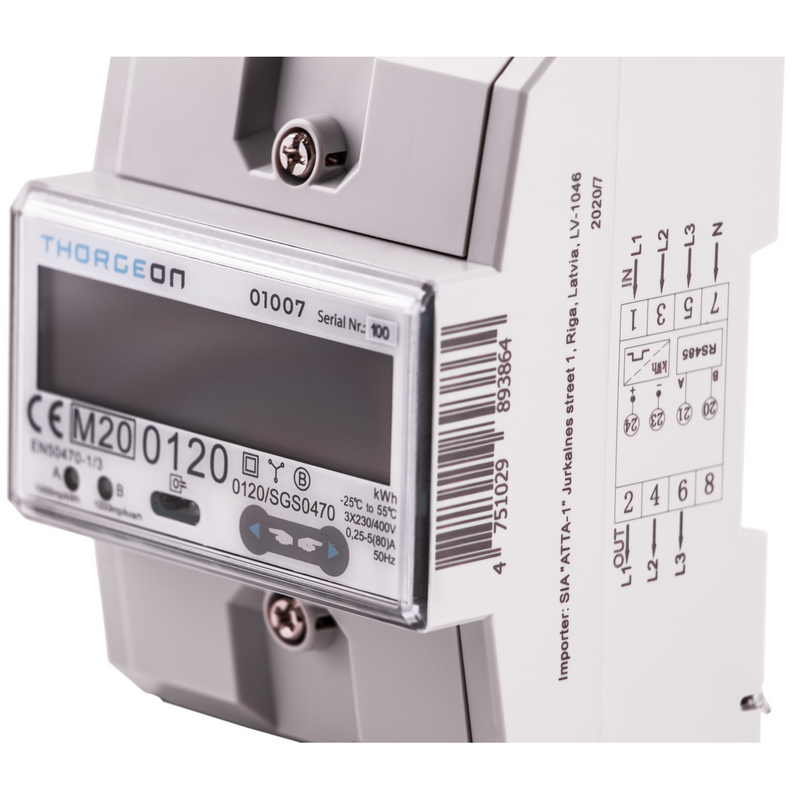

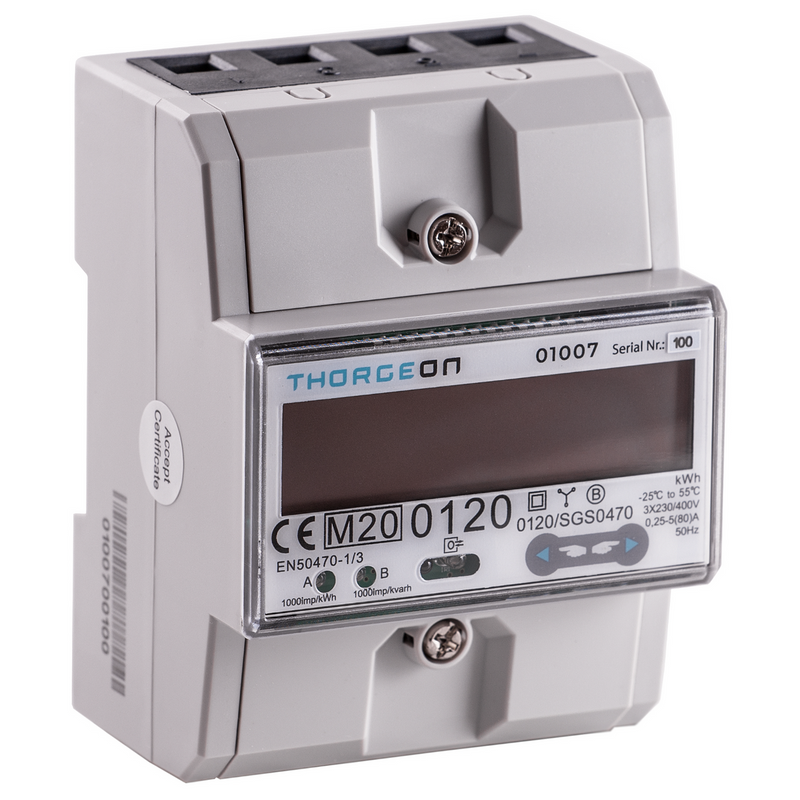

3-phase DIN rail mounted MOD-BUS 2-tariff energy meter 80A MID certificate Thorgeon
SKU 01007
Original price
€296.15
-
Original price
€296.15
Original price
€296.15
€296.15
-
€296.15
Current price
€296.15
includes VAT 25.5% Shipping costs are calculated at checkout.
Availability:
in stock, ready to be shipped
Order Product
Delivery time approximately 2 weeks
Product code: 4751029893864
Technical specifications:
- Nominal current (In): 5 A
- Maximum current (Imax): 80 A
- Nominal voltage (Un) N-L: 230 V
- Frequency: 50-60 Hz
- Number of poles: Three-phase
- Impulse rate: 1000 Imp/kWh (kvarh)
- Mounting method: DIN rail adapter (DRA)
- Module width: 4
- Width: 75 mm
- Depth: 65 mm
- Height: 105 mm
- Protection class (IP): IP20
- Measuring device type: Electronic
- Accuracy class: B
- Model: Direct measurement
- Energy type: Active power
- Tariff: 2
- Tariff control: Internal
- Approval: Measuring Instruments Directive
- Pulse output: Electrical
- Display type: Digital
- Interface type: Modbus
- Built-in battery: Yes
- LCD display: Yes
Brochure (In English)
User manual (In English)
Delivery
We ship your order from our warehouse in Jyväskylä. Orders placed before 2 PM are usually shipped on the same day. Free delivery within Finland for orders over €150.
Warranty
Products purchased through Lumenled come with a manufacturer's warranty, supported by Lumenled in cooperation with the importer. You can find detailed warranty terms here: Warranty terms of our partners.
