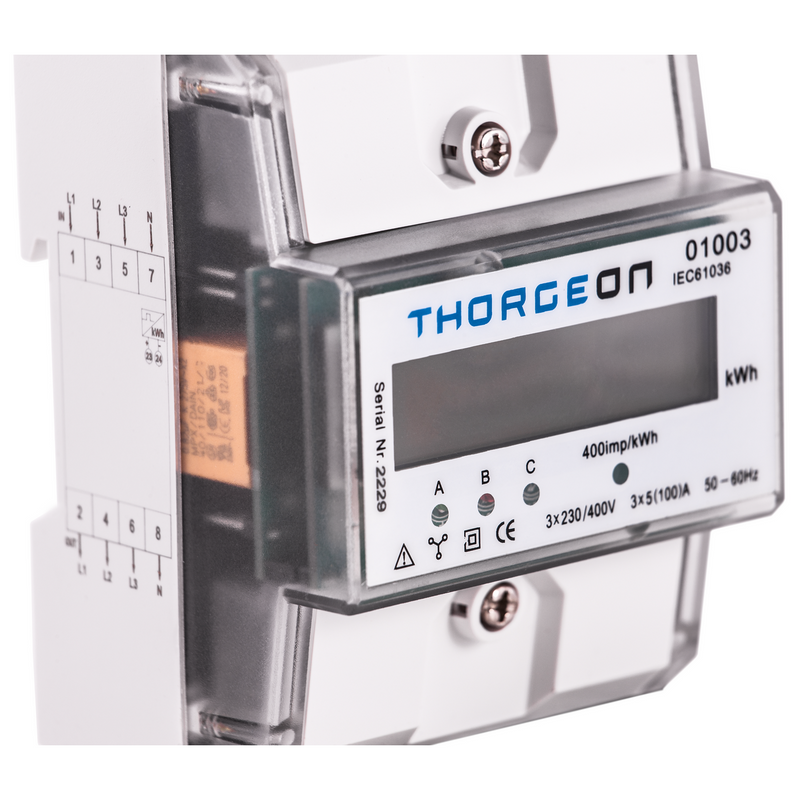

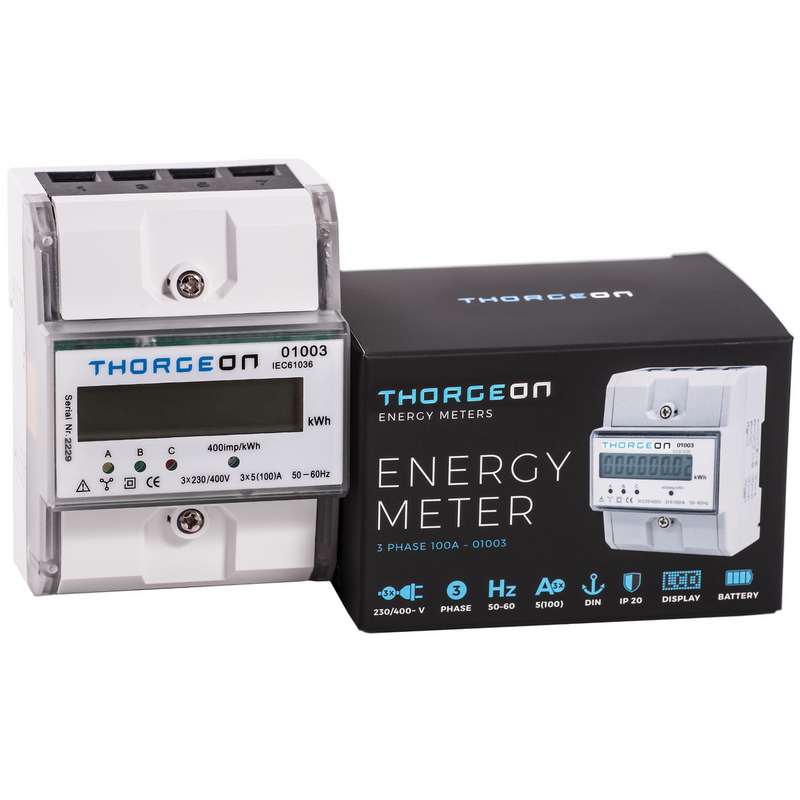

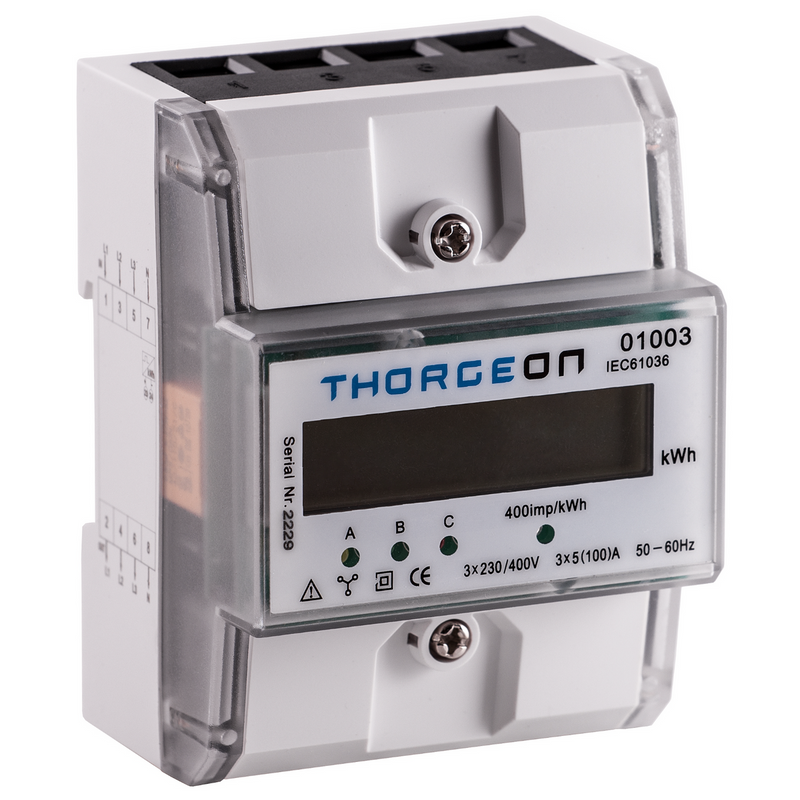

3-phase DIN rail mounted energy meter 100A Thorgeon
SKU 01003
Original price
€95.40
-
Original price
€95.40
Original price
€95.40
€95.40
-
€95.40
Current price
€95.40
includes VAT 25.5% Shipping costs are calculated at checkout.
Availability:
in stock, ready to be shipped
Order product
Delivery time approx. 2 weeks
Product code: 4751029890375
Technical specifications:
- Nominal current (In): 5 A
- Maximum current (Imax): 100 A
- Nominal voltage (Un) N-L: 230 V
- Frequency: 50-60 Hz
- Number of poles: Three-phase
- Pulse rate: 400 Imp/kWh (kvarh)
- Mounting method: DIN-rail adapter (DRA)
- Module width: 4
- Width: 76 mm
- Depth: 65 mm
- Height: 100 mm
- Protection class (IP): IP20
- Measuring device type: Electronic
- Model: Direct measurement
- Energy type: Active current
- Suitable for: Purchase
- Tariff: Single tariff
- Tariff control: Internal
- Pulse output: Electrical
- Display type: Digital
- Interface type: None
- Built-in battery: Yes
- LCD display: Yes
Brochure (in English)
Instructions for use (in English)
Delivery
We ship your order from our warehouse in Jyväskylä. Orders placed before 2 PM are usually shipped on the same day. Free delivery within Finland for orders over €150.
Warranty
Products purchased through Lumenled come with a manufacturer's warranty, supported by Lumenled in cooperation with the importer. You can find detailed warranty terms here: Warranty terms of our partners.
