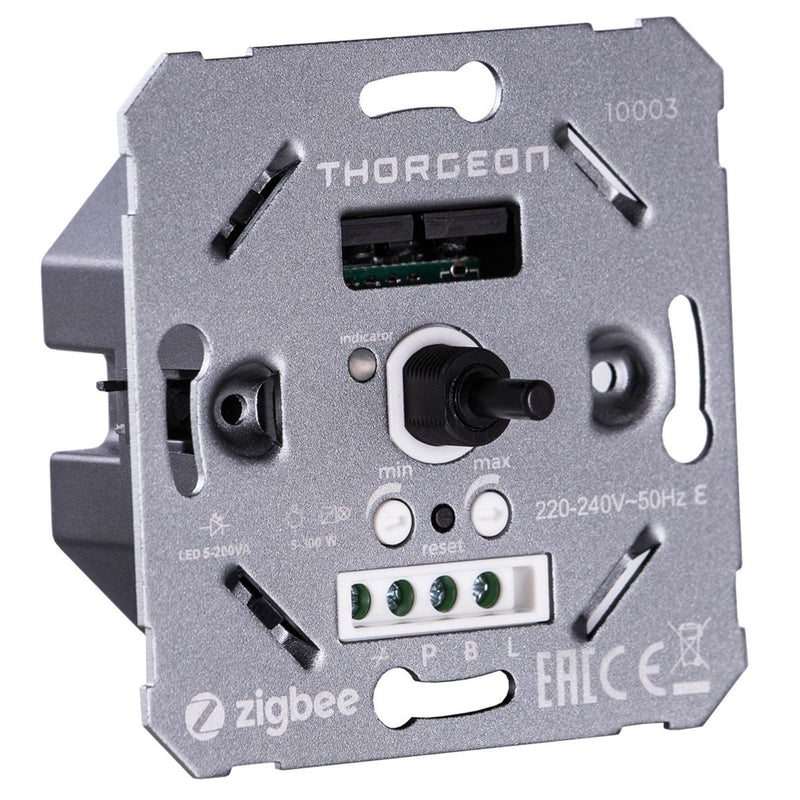

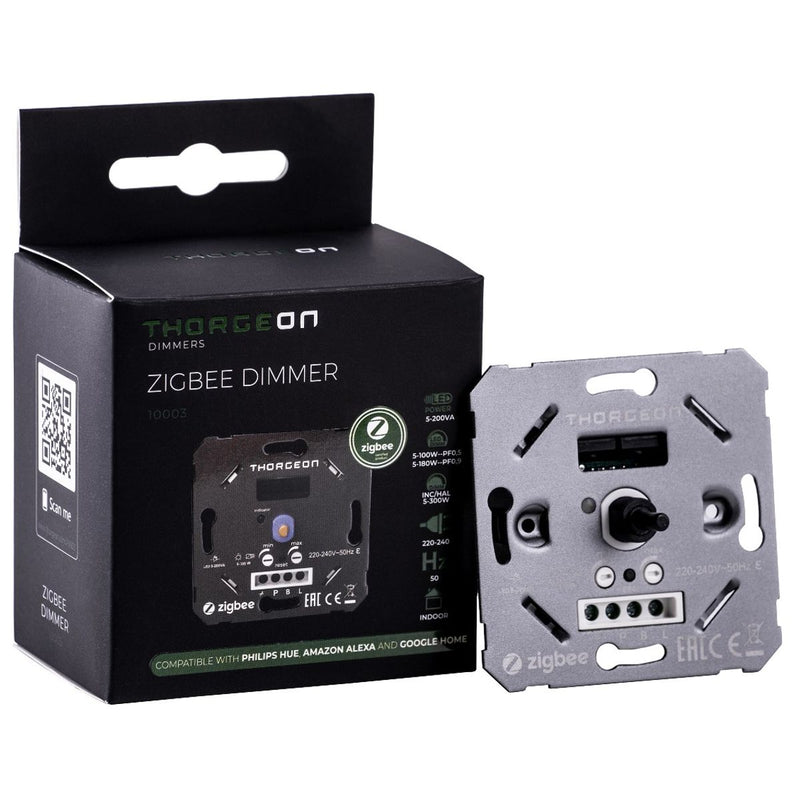

Dimmer ZigBee LED5-200VA HL10-300W Dimmer with Zigbee Thorgeon

Order product

Delivery time approx. 2 weeks

Product code: 4751029894021

Technical specifications:

• Operating mode: Rotary/push button
• Protection class (IP): IP20 (indoor use only)
• Rated voltage: 220-240 V AC
• Frequency: 50 Hz
• Maximum switching power (LED): 300 VA
• Device width: 70 mm
• Device height: 70 mm
• Device depth: 52 mm

• Number of modules (modular system): 1
• Bluetooth app control: No
• Dimming: Leading edge dimming (not phase-angle dimming)
• Series dimmer: No
• Sub-station input: No
• Light value memory: Yes
• Usable with push button: Yes
• Motion sensor: No
• Presence detector: Yes
• Timer: No
• Intermediate operation button: No
• Infrared button: No

Installation:

• Flush mounting (recessed)
• Attachment: Screw mounting
• Material: Plastic
• Color: Gray (RAL color: 9011 (approximate)

Electrical data:

• Control voltage: 220 - 240 V AC
• Min. depth of flush-mounted box: 52 mm

Compatibility:

• Apple HomeKit: No
• Google Assistant: Yes
• Amazon Alexa: Yes
• IFTTT support: No
• 6 mm potentiometer adjustable: Yes
• Compatible with most brands: Yes
• 10 lamps for one dimmer: Yes
• Compatible with Busch-Jaeger: Yes
• Compatible with JUNG: Yes
• ZigBee dimmer: Yes
• Compatible with Philips HUE, Amazon Alexa and Google Home (via ZigBee function)

User manual (English)
