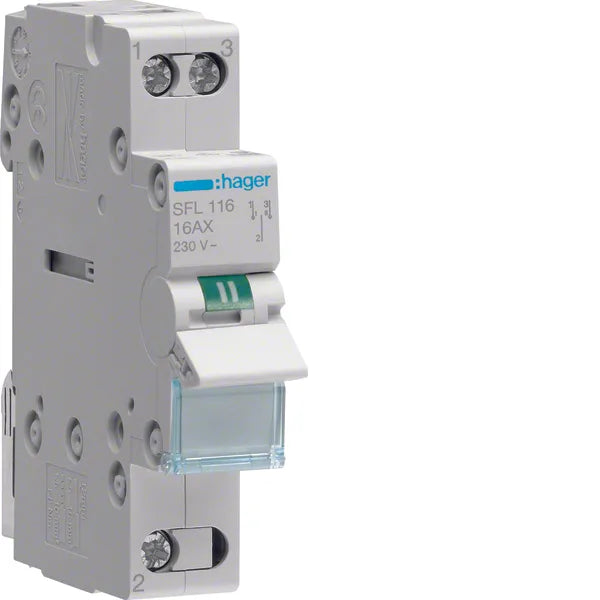

Hager SFL116 – 1-pole 16 A changeover switch

Product code: SFL116
EAN: 3250615510716
Brand: Hager

Product description

Hager SFL116 is a modular changeover switch with a single pole, rated load 16 A, with bottom common connection. The switching function is 1-0-2 (I-0-II), which allows alternating between two different power sources. It acts as an isolator and a power grid management component.

Specifications

• Brand/Model: Hager SFL116

• EAN / GTIN: 3250615510716

• Rated load current (In): 16 A

• Number of poles: 1 pole

• Switching function: 1-0-2 (I-0-II) – changeover switch

• Voltage: 230V AC

• Protection class: IP20

• Depth / installation depth: 68 mm

• Module width: 1 module (1 module)

• Breaking capacity (Icw): 0.24 kA

• Rated switching capacity: 0.338 kA

• Connection type: Bottom common (common connection point at the bottom)

Features and benefits

• Switching between two power sources (I ↔ II)

• Bottom common connection makes wiring easier as the common point is at the bottom

• Compact size (1 module) – space-saving

• Modular design suitable for DIN rail mounting

• Reliable switching and operation in industrial and construction applications
