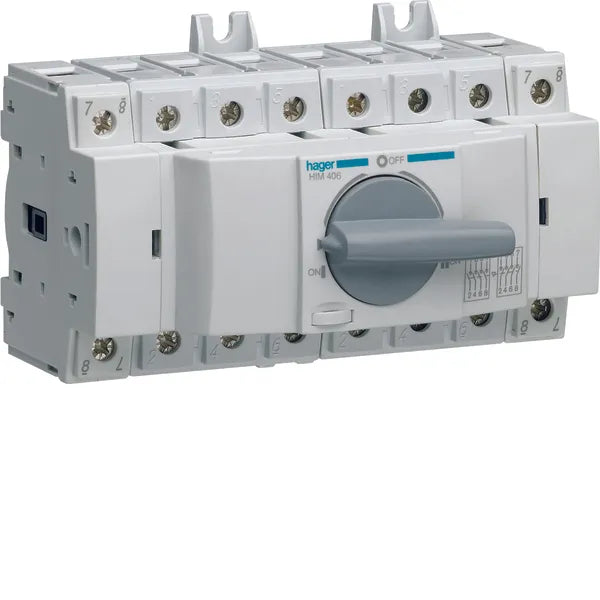

Hager HIM406 – Modular Change-Over Switch 4×63 A

Product code: HIM406
EAN: 3250613140564
Brand: Hager

Product description

The Hager HIM406 is a modular 4-pole change-over switch with a rated load of 63 A. It is suitable for DIN rail mounting and is designed to safely control and change the power source in three-phase systems.
This product offers an effective solution for power supply management, for example in critical systems where switching power supply is necessary (e.g. backup power, parallel supply systems).

Specifications

• Brand/Model: Hager HIM406

• EAN/GTIN: 3250613140564

• Rated load current (Iu): 63 A

• System: 4 poles (3P + N)

• Electrical voltage: 380-415 V AC

• Voltage resistance (insulation): Ui = 800 V

• Impulse voltage withstand (Uimp): 8,000 V

• Short-time withstand (Icw): 1.50 kA

• Conditional short-circuit withstand capacity (Icc): 50 kA

• Power rating (AC-23 / 400V): 28 kW
• Power rating (AC-21 / 400V): 41 kW

• Module width / installation units: 8 modules

• Dimensions (H x W x D): 76 x 140 x 89 mm

• Tightening torque: 3.5 – 3.85 N m

• Operating temperature: –20 °C … +70 °C

• Protection class / enclosure: IP20

• Connection cable (flexible / rigid): 2.5 … 35 mm²

• Function: Center position (0) included – changes direction (1 ↔ 2)


Features and benefits

• Allows switching of power supply between two different sources
• 4-pole solution including neutral connection

• The middle position (OFF) enables a safe mode for separation

• Modular design, easy to integrate into DIN rail

• Strong electrical resistance and safety in accordance with standards

• Suitable for applications where redundancy or backup power connections are required
