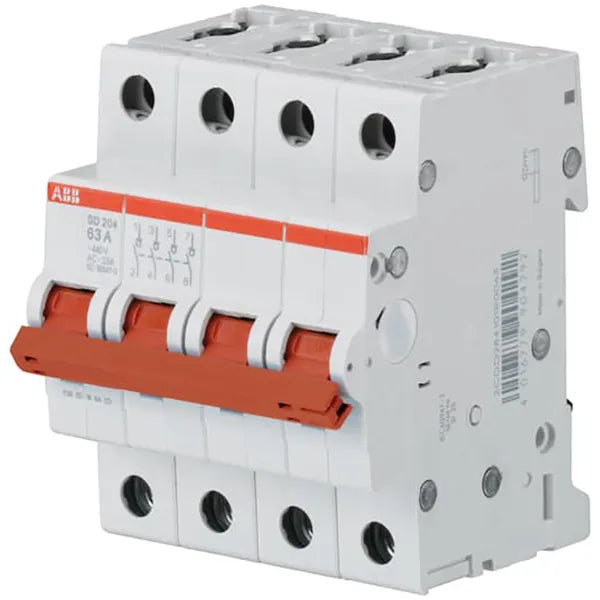

ABB SD204/63, 4-pole switch lever, 63 A, 440 V

Product code: 2CDD284101R0063 or SD204/63
EAN: 4016779904292
Brand: Schneider Electric

Product description

ABB's SD204/63 is a four-pole load break switch that enables safe and efficient electrical isolation in multi-phase systems. The device is suitable for both industrial and electrical installation central solutions where reliable isolation is required for maintenance and troubleshooting situations.

Features

• Voltage type: AC (alternating current)

• Rated current: 63 A

• Number of poles: 4 (4-pole / 4-pole)

• Rated voltage / operating voltage: 440 V AC (maximum)

• Minimum nominal voltage: 12 V AC

• Impulse withstand voltage (Uimp): 4 kV @ 2000 m / 6.2 kV @ sea level

• Breaking capacity (Ics / Inc): 25 kA

• Effective switching load: equivalent value (Ics)

• Mechanical durability: 20,000 cycles

• Electrical durability: 10,000 AC cycles

• Width in modules: 4 modules (70 mm)

• Height: 88mm

• Depth / construction depth: 69 mm

• Net weight: 0.34 kg

• Connections: screw terminals, certain wire and cable sizes (e.g. 0.75 … 25 mm²)

• Tightening torque: 2.8 N m

• Protection class: IP20 , IP40 protected in the outer housing

• Operating temperature range: –25 °C … +55 °C

• Standards: IEC/EN 60947-3

• Additional features:
  • Clear indication of ON / OFF position
  • The operating lever can be locked in both positions
  • Compatible with additional switch contacts and other accessories

Benefits & uses

• Enables safe and clear isolation of the entire system during maintenance or fault situations

• High breaking capacity of 25 kA ensures safety even under high loads

• Modular design, DIN rail mounting and compatibility with accessories provide flexibility

• Lockable lever and clear position markings improve safety during maintenance work
