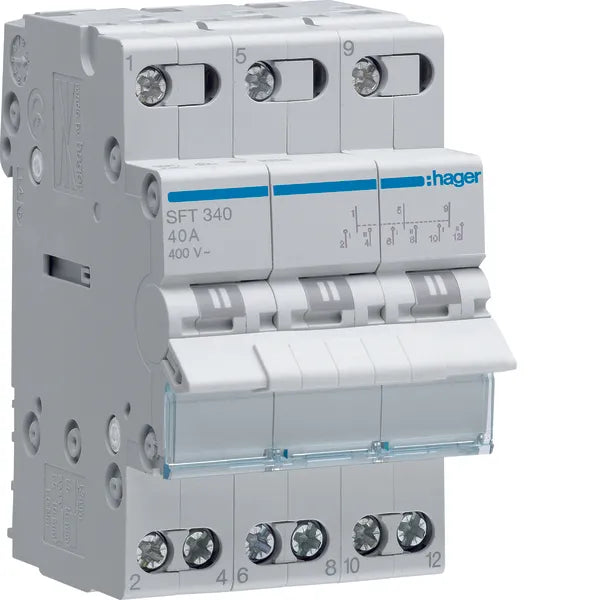

Hager Changeover Switch - SFT340 1-0-2 3N 40A 400VAC

Order product

Delivery time approx. 2 weeks

Product code: SFT340
EAN: 3250615510938
Brand: Hager

Three-pole changeover switch 40 A, 400 V, IP20

This three-pole changeover switch is designed for industrial and installation applications where reliable and safe power control is required. The switch is suitable for AC operation, with a rated current of 40 A and a rated voltage of 400 V. With an IP20 protection rating, the device is intended for indoor use.

The switch offers reliable operation without a signal lamp and has a built-in depth of 70 mm. Thanks to its compact 3-module width, it is well-suited to the space requirements of various installation sites. The device includes three changeover contacts but no separate normally open (NO) or normally closed (NC) contacts.

Brochure

Technical data:

• Voltage type: AC (alternating current)

• Switch function: changeover switch

• Rated current: 40 A

• Rated voltage: 400 V

• Minimum rated voltage: 400 V

• Number of poles: 3

• Protection class: IP20

• Built-in indicator light: No

• Recess depth: 70 mm

• Maximum lamp power: 0 W

• Short-circuit withstand and breaking capacity (Icw): 0.6 kA

• Rated switching capacity: 0.846 kA

• Width in module units: 3

• Number of changeover contacts: 3

• Number of normally open (NO) contacts: 0

• Number of normally closed (NC) contacts: 0

• Forced isolation according to DIN VDE 0113: No
