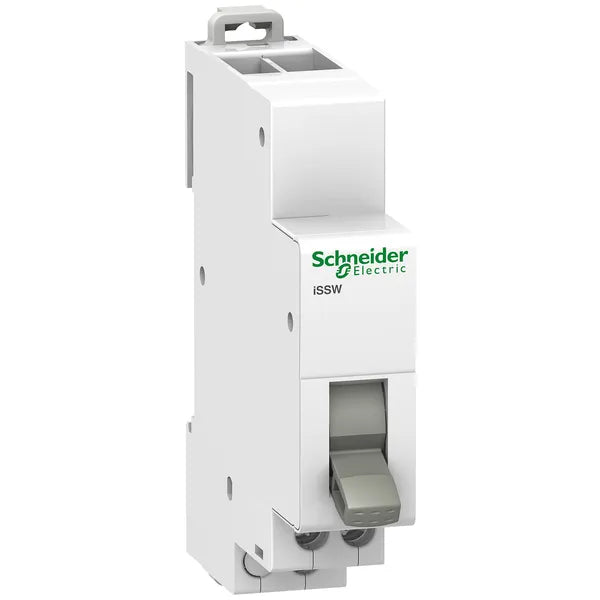

Schneider Acti9 iSSW changeover switch 1 C/O, 20 A, 250 V AC, 3 positions

Product code: A9E18073
EAN: 3606480088506
Brand: Schneider Electric

Product description

Acti9 iSSW is a manual changeover switch that allows three different positions to be controlled with a single changeover contact (1 C/O). It is designed for easy and safe current control in electrical circuits where a selectable position is required, such as on/off/special position. The switch is suitable for modular and DIN rail installations, and its design is optimized especially for partition systems where separate phase isolators are required for feed-through.

Features

• Voltage type: AC (alternating current)

• Switch function: Two-way switch (third position for disconnection)

• Rated current: 20 A

• Rated voltage: 250 V AC

• Number of poles: 2 poles (1 changeover contact)

• Protection class: IP40

• Built-in depth: 75 mm

• Indicator light: No

• Maximum lamp power: 0 W

• Short-circuit breaking capacity (Icw): 0 kA

• Nominal switching capacity: 0 kA

• Width in modules: 1 module

• Minimum rated voltage: 250 V

• Number of NC contacts: 0

• Number of NO contacts: 0

• Number of changeover contacts: 1

• Forced separation according to DIN VDE 0113: Yes

• Color / shell: White

• Operating cycles: approx. 30,000 opening/closing cycles

• Ambient temperature range: –20 °C … +50 °C

• Dimensions (W x H x D): 18mm x 82mm x 75mm

Benefits

• Provides selectable operating position with a single linear switch

• Compact modular design and DIN rail mounting make installation easy

• High duty cycle and reliability (30,000 cycles)

• Designed specifically for systems where phase isolators and bushings are required
