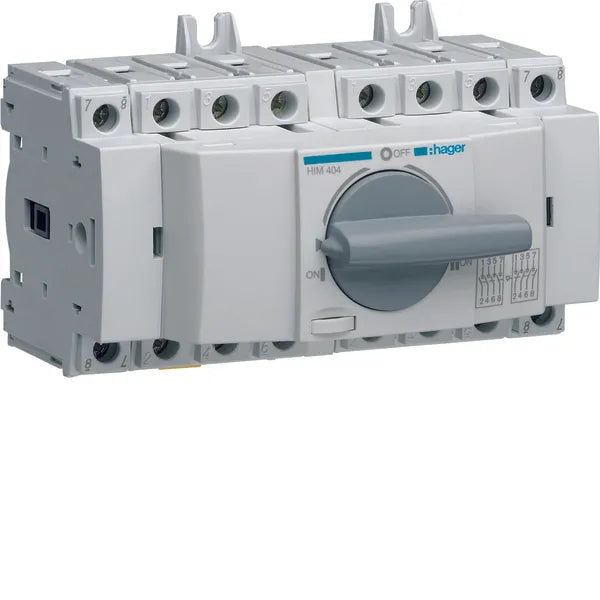

Hager HIM404 – Modular Change-Over Switch 4×40 A

Product code: HIM404
EAN: 3250613140557
Brand: Hager

Product description

Hager HIM404 is a modular four-pole (3P + N) change-over switch with a rated load of 40 A. It is designed for switching the power supply between two different sources under load in a system. The switch meets the requirements of DIN EN 60947-3.

It is used, for example, in backup power systems, parallel power supplies and other applications where reliable power grid management is required.

Specifications

• Brand/Model: Hager HIM404
• EAN/GTIN: 3250613140557

• Rated load current (Iu): 40 A
• Number of poles: 4 poles (3P + N)

• Rated voltage (Ue): 380–415 V AC

• Insulation voltage (Ui): 800 V

• Impulse voltage withstand (Uimp): 8,000 V

• Short-time withstand (Icw): 1.26 kA

• Conditional short-circuit withstand capacity (Icc): 50 kA (use fuses gl-gG)

• Power rating AC-1 (400 V): 26,000 W

• Module width / installation units: 8 modules

• Dimensions (H x W x D): 68 x 127.5 x 89 mm

• Protection class (IP): IP20

• Control / operation: Short rotary handle

• Connection cables: 1.5 – 16 mm² (flexible / rigid)

• Operating temperature: –20 … +70 °C
• Interlock option: Yes

Features and benefits

• Can switch power supply between two different sources under load

• Safe disconnection function in the middle position (I-0-II function)

• Interlock feature prevents simultaneous switching between different sources

• Compact dimensions and modular design, suitable for DIN rail

• High electrical resistance and compliance with standards (IEC 60947-3)
