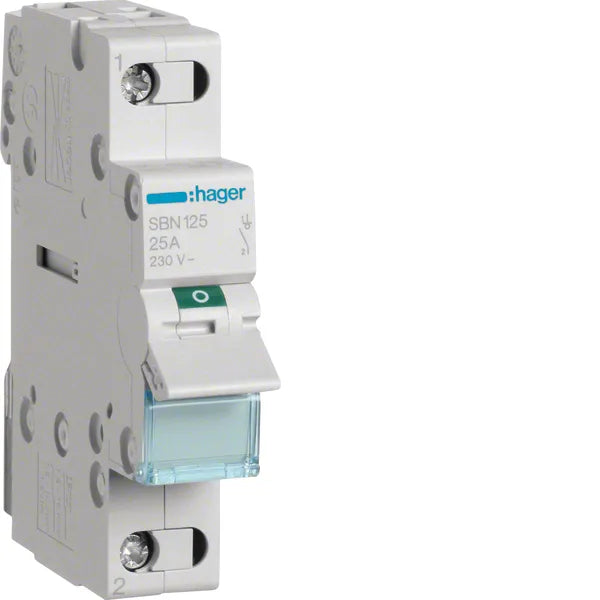

Hager 1P 25A Switch – load switch with indicator light

Product code: SBN125
EAN: 3250615510082
Brand: Hager

Product description

Single-pole (1-pole) 25 A modular switch with an indicator light (LED or other lighting) to indicate the switch status. Suitable for mounting on a modular busbar system and for use in control or monitoring applications where visual indication is desired.

Specifications

• Brand / Model: Hager (SBB125)

• EAN / GTIN: 3250615511683

• Rated load current: 25 A

• Number of poles: 1 pole

• Voltage (rating): 230 V AC

• Indicator light: Yes (indicator light)

• Protection class (IP): IP20

• Width when modulated: 1 module

• Depth / installation depth: Structural depth approx. 68 mm

• Breaking capacity (Icw): 0.375 kA

• Switching capacity: 0.529 kA (rated switching capacity)

• Minimum voltage / switching range: 230 V

Features and benefits

• Indicator light makes it easy to visualize the switch status

• Modular design suitable for DIN rail mounting

• Compact width (1 module) saves space in the electrical panel

• Strong breaking capacity and connection structure

• Easy to integrate into control systems or automation
