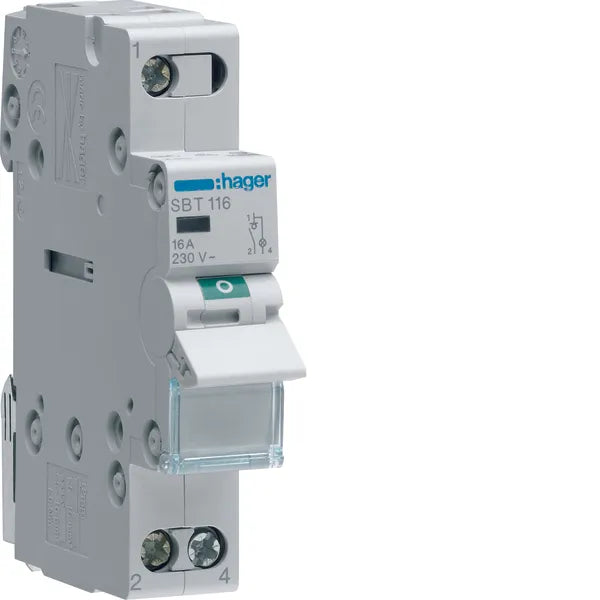

Hager 1-pole circuit breaker 16 A, 230 V - with indicator light

Product code: SBT116
EAN: 3250615511645
Brand: Hager

Product description

This Hager 1-pole modular switch provides precise power disconnection from one phase and includes a signal light (indicator light). The solution is suitable for electrical installations where visual status information is desired. The compact design (1 module) allows flexible installation in electrical panels.

Features

• Voltage type: AC (alternating current)

• Switch function: Off switch with indicator light

• Rated current: 16 A

• Nominal voltage: 230 V

• Number of poles: 1 pole

• Protection class: IP20

• Built-in depth: 68 mm

• Indicator light: Yes (LED type)

• Maximum lamp power: 0 W

• Short-circuit breaking capacity (Icw): 0.24 kA

• Nominal switching capacity: 0.338 kA

• Width in modules: 1 module

• Minimum rated voltage: 230 V

• NC contacts: 0

• NO contacts: 1

• Number of changeover contacts: 0

• Forced separation according to DIN VDE 0113: No

Benefits

• Increase safety and usability with a visual indicator light

• Easy to install in a modular frame

• Suitable for situations where you want to see the status of the switch quickly

• A reliable and standards-compliant choice for everyday use
