Product code: 4751029897350

Order product

Delivery time approximately 2 weeks

Specifications:

• Light source: LED (not replaceable)
• Voltage: 220-240V
• Beam angle: Medium-wide beam (21-40°)
• Protection class: IP44 (protected against splash water)
• Impact resistance: IK04 (small solid objects)
• Power: 10W
• Color rendering index: CRI 90-100 (very good color rendering)
• Light output: 800 lm (lumens)
• Luminous efficacy: 80 lm/W (good efficiency)
• Width 96 mm
• Height/depth 45 mm
• Length 96 mm

Installation

• Surface mounting: No
• Flush mounting: Yes
• Wall mount: No
• Pendant light: No
• Ceiling mounting: Yes
• Rail mounting: No
• Stand/floor model: No
• Track mounting: No
• Tensioner installation: No
• Low voltage cable system: No

Adjustability

• Reversible: Yes
• Motion sensor: No
• With light sensor: No

Lamp holder

• There is no

Housing

• Material: Other
• Surface treatment: Other
• Color: Nickel
• Cover material: Other
• Brushed surface: No

Electricity

• Voltage type: AC
• Control device type: LED driver voltage controlled
• Control unit: Yes
• Interchangeable control device: Yes
• Dimming by control device: Yes
• Dimming 0-10V: No
• Dimming 1-10V: No
• Dimming DALI-2: No
• Dimming DALI: No
• Dimming DMX: No
• Dimming DSI: No
• Dimming internal potentiometer: No
• Dimming GPRS: No
• Dimming LineSwitch: No
• Dimming manufacturer's own system: No
• Dimming mains voltage modulation: No
• Dimming phase cut: Yes
• Dimming phase activation: Yes
• Programmable dimming: No
• Dimming RF: No
• Dimming Sine Wave Reduction: No
• Dimming Touch and Dim: No
• Dimming Zigbee: No
• Push button dimming: Yes
• No dimmer function: No

Light distribution

• Reflector: High-gloss
• Light distributor: Diffuser lens/optics/panel
• Light distribution: Double asymmetrical

Energy efficiency

• Average service life L70/B50 at 25 °C: 40000 h
• Average service life L80/B10 25 °C: 40000 h
• Light output at average service life of 35000 h, 25 °C (tq): 800%
• Protection class: II

Lamp information

• Suitable lamp power: 10 W
• Light color: White
• Light output: 800 lm
• Power factor: 0.8
• Vibration value Pst LM: 0.064
• Color temperature adjustable: No
• Light intensity adjustable: No
• Beam angle adjustable: No
• Stroboscopic effect value SVM: 0.093

Dimensions

• Outer diameter: 96 mm
• Embedding width: 83 mm
• Recess height/depth: 41 mm
• Immersion length: 83 mm
• Sink diameter: 83 mm

Contact

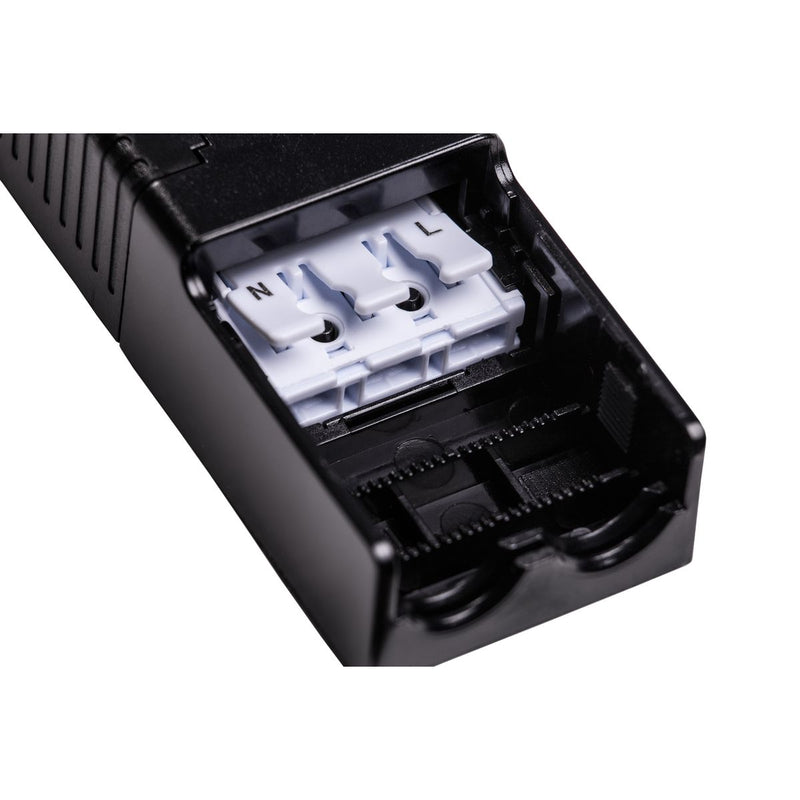

• Connection type: Pressure switch

Additional information

• Warranty: 5 years
• Luminaire with limited surface temperature, marking "D" according to EN 60598-2-24: No
• Internal emergency power supply: No
• Glow-wire testing according to IEC 60695-2-11: No
• Can the luminaire be covered with thermal insulation material: No
• IFTTT support: No
• Color consistency (McAdam ellipse): SDCM6
• Compatible with Apple HomeKit: No
• Compatible with Google Assistant: No
• Compatible with Amazon Alexa: No

Brochure (in English)
